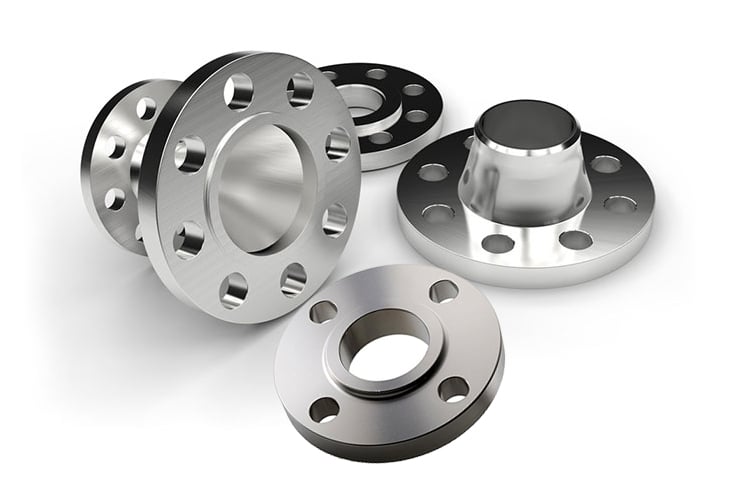

UNS N06600 Inconel 600 Lapped Joint Flanges Manufacturer, Stockist & Worldwide Exporter

Synergy Engineering Solution is a leading manufacturer, stockist, supplier and worldwide exporter of UNS N06600 Inconel 600 Lapped Joint Flanges from Mumbai, India. We supply specialized nickel alloy flanges for demanding industrial applications where corrosion resistance, oxidation resistance and elevated-temperature performance are important considerations.

Our UNS N06600 Inconel 600 Lapped Joint Flanges are designed for piping systems that require reliable bolted connections and convenient assembly or disassembly. Inconel 600, also identified as UNS N06600 and Werkstoff No. 2.4816, is a nickel-chromium-iron alloy used in a wide range of corrosion-resistant and high-temperature applications. :contentReference[oaicite:0]{index=0}

Synergy Engineering Solution has a strong international supply focus, with particular attention to the Middle East and GCC markets. We support EPC contractors, engineering companies, procurement organizations, fabricators, distributors, stockists and industrial end users in the United Arab Emirates, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

p> UNS N06600 Inconel 600 Lapped Joint Flanges are flange components manufactured from Inconel 600 alloy and used with a suitable stub end or lap-joint arrangement in piping systems. A lap joint flange is generally used where frequent dismantling of a piping system is required or where alignment during assembly is important.

Unlike a conventional weld neck or slip-on flange, the lap joint flange is used together with a stub end. The flange itself can rotate around the stub end, which can make bolt-hole alignment easier during installation. This design can be particularly useful for systems requiring repeated inspection, cleaning or maintenance.

For nickel alloy piping systems, lap joint configurations can also provide an engineering option where the designer wants the corrosion-resistant alloy concentrated in the wetted or process-contact component while using an appropriate backing arrangement. The exact configuration should always be selected by the project engineer based on the service environment and applicable piping code.

Types Of Flanges manufacturer

Nickel Alloys Flanges

Monel Flanges

Incoloy Flanges

inconel Flanges

Hastelloy Flanges

Duplex Flanges

Super Duplex Flanges

904L Flanges

Inconel 600 is a nickel-chromium alloy containing iron and is identified by the UNS designation N06600. Published technical information identifies nickel as the principal element, with chromium generally specified in the 14–17% range and iron in the 6–10% range under commonly referenced compositions. :contentReference[oaicite:1]{index=1}

The combination of nickel and chromium gives Alloy 600 useful resistance to oxidation and corrosion in many industrial environments. The alloy is also used for selected elevated-temperature applications and equipment such as heat-treatment systems and furnace components. :contentReference[oaicite:2]{index=2}

The suitability of Inconel 600 for a particular flange application depends on temperature, pressure, chemical composition, concentration, flow conditions, mechanical loading and the applicable engineering specification. Therefore, material selection should always be verified against the actual operating conditions.

Key Features of UNS N06600 Inconel 600 Lapped Joint Flanges

• Manufactured from UNS N06600 Inconel 600 alloy.
• Nickel-chromium-iron alloy construction.
• Designed for lap-joint piping arrangements.
• Allows convenient bolt-hole alignment during assembly.
• Useful for piping systems requiring frequent dismantling.
• Good resistance to oxidation in suitable environments.
• Good corrosion resistance for many industrial services.
• Suitable for selected elevated-temperature applications.
• Suitable for chemical and petrochemical applications.
• Available with different face and dimensional requirements.
• Can be supplied according to project specifications.
• Suitable for international industrial projects.
• Strong Middle East and GCC export focus.

UNS N06600 Inconel 600 Lapped Joint Flanges Specifications

ASTM B564 is commonly referenced for forged nickel and nickel-alloy flange products, while ASME B16.5 provides dimensional and pressure-temperature requirements for many commonly used pipe flanges and flanged fittings. Product suppliers commonly list UNS N06600 lap joint flanges under ASTM B564/ASME SB564 with ASME B16.5 dimensions. :contentReference[oaicite:3]{index=3}

Design of Inconel 600 Lap Joint Flanges

The major feature of a lapped joint flange is its relationship with the stub end. The flange has a flat face that sits behind the stub end, allowing the flange to rotate before the final bolting operation.

This arrangement can simplify installation where bolt-hole orientation is difficult to achieve using fixed flanges. It can also make maintenance work more convenient because the flange can be repositioned around the stub end.

The flange and stub-end combination must be treated as a complete engineered connection. Correct dimensions, gasket selection, bolt selection, flange facing, pressure class and installation procedure are essential to achieving a reliable joint.

Advantages of UNS N06600 Lapped Joint Flanges

• Convenient alignment of bolt holes.
• Useful for systems requiring repeated disassembly.
• Suitable for selected corrosive environments.
• Good oxidation resistance under appropriate conditions.
• Suitable for selected elevated-temperature services.
• Useful for chemical-processing applications.
• Suitable for selected petrochemical systems.
• Can simplify maintenance and inspection procedures.
• Available in different pressure classes and dimensions as specified.
• Suitable for specialized industrial piping applications.

Applications of UNS N06600 Inconel 600 Lapped Joint Flanges

UNS N06600 Inconel 600 Lapped Joint Flanges can be considered for piping and equipment connections where the properties of Inconel 600 are appropriate for the operating environment. Common application areas include:

• Chemical processing plants
• Petrochemical plants
• Oil and gas processing
• Refineries
• Power generation facilities
• Heat-treatment equipment
• Industrial furnace systems
• Heat exchanger systems
• Condensers
• Marine engineering
• Pollution-control equipment
• Industrial process piping
• Specialized fabrication projects

Inconel 600 Lapped Joint Flanges for Chemical Processing

Chemical processing plants frequently operate with aggressive chemicals, elevated temperatures and demanding process conditions. The correct flange material is therefore important for system reliability.

UNS N06600 Inconel 600 can be considered for suitable chemical-processing environments because of its nickel-chromium alloy characteristics and resistance to oxidation and corrosion in many applications.

Before selecting the material, engineers should evaluate the exact chemical composition, concentration, temperature, pressure and exposure conditions. Synergy Engineering Solution can review the customer's technical specification before preparing a quotation.

Inconel 600 Lap Joint Flanges for Petrochemical Industry

Petrochemical plants contain extensive process piping and equipment connections that can be exposed to elevated temperatures and corrosive process environments.

Our UNS N06600 Inconel 600 Lapped Joint Flanges can be supplied for suitable petrochemical applications where the project specification calls for Alloy 600.

The lap-joint configuration can be advantageous where piping sections need to be frequently disconnected for inspection, cleaning or maintenance.

Inconel 600 Lapped Joint Flanges for Oil and Gas Applications

The oil and gas industry requires piping components capable of meeting demanding mechanical and environmental requirements. Nickel alloys are selected in specialized services where their corrosion and temperature characteristics provide an engineering advantage.

Synergy Engineering Solution supplies UNS N06600 Inconel 600 Lapped Joint Flanges for suitable oil and gas, refining and process applications according to customer specifications.

Inconel 600 Lap Joint Flanges for High-Temperature Applications

Inconel 600 is commonly selected for applications involving elevated temperatures because of its nickel-chromium composition and oxidation resistance. Technical references report that Alloy 600 maintains useful properties from cryogenic temperatures through elevated-temperature service, with the actual design limit depending on the application. :contentReference[oaicite:4]{index=4}

For flange applications, engineers should consider not only the alloy but also flange pressure class, gasket, bolting, thermal cycling and the applicable piping code.

Inconel 600 Lapped Joint Flanges for Heat Exchangers

Heat exchangers and associated piping can experience temperature differences, process-fluid exposure and thermal cycling. A suitable flange material is essential for maintaining reliable connections.

UNS N06600 can be considered for appropriate heat-transfer applications where the material has been approved by the project engineer.

UNS N06600 Lapped Joint Flanges for Middle East Projects

Synergy Engineering Solution is focused on supplying specialized nickel alloy products to the Middle East and GCC region. The region's oil and gas, refining, petrochemical, chemical, power and industrial sectors create demand for specialized piping components.

Our Middle East export focus includes:

• United Arab Emirates
• Saudi Arabia
• Qatar
• Oman
• Kuwait
• Bahrain
• Other GCC markets

Inconel 600 Lapped Joint Flanges Supplier in UAE

The United Arab Emirates has major oil and gas, petrochemical, marine, power and industrial facilities. Synergy Engineering Solution supplies UNS N06600 Inconel 600 Lapped Joint Flanges for suitable UAE project requirements.

Customers can send flange size, pressure class, facing, standard, quantity and delivery location to receive a quotation.

Inconel 600 Lapped Joint Flanges Supplier in Saudi Arabia

Saudi Arabia is one of the major industrial and energy markets in the Middle East. Refineries, petrochemical plants, oil and gas facilities and industrial projects can require specialized nickel alloy components.

Synergy Engineering Solution supports Saudi Arabian customers requiring UNS N06600 Inconel 600 Lapped Joint Flanges according to project specifications.

Inconel 600 Lapped Joint Flanges Supplier in Qatar

Qatar's energy and industrial sectors require specialized piping components for selected process applications. Synergy Engineering Solution supports Qatar customers with Inconel 600 flange requirements.

Inconel 600 Lapped Joint Flanges Supplier in Oman

Oman has significant oil and gas, petrochemical, marine and industrial activities. Our company supports Oman customers requiring UNS N06600 Inconel 600 Lapped Joint Flanges for suitable projects.

Inconel 600 Lapped Joint Flanges Supplier in Kuwait

Synergy Engineering Solution supplies specialized nickel alloy flange products for suitable Kuwait industrial and petrochemical applications. Product specifications, inspection requirements and export documentation can be coordinated according to the purchase order.

Inconel 600 Lapped Joint Flanges Supplier in Bahrain

Bahrain's refining, petrochemical, marine and industrial sectors may require corrosion-resistant alloy components for specialized piping systems. Synergy Engineering Solution supports Bahrain enquiries for UNS N06600 products.

Worldwide Exporter of UNS N06600 Inconel 600 Lapped Joint Flanges

Synergy Engineering Solution is an India-based worldwide exporter of specialized engineering products. We support international customers with product-specific requirements, documentation and export packing.

Our strong export focus is the Middle East and GCC region, while enquiries from other international markets are also welcome.

• UAE
• Saudi Arabia
• Qatar
• Oman
• Kuwait
• Bahrain
• Other Middle East destinations
• International destinations worldwide

Manufacturing of UNS N06600 Inconel 600 Lapped Joint Flanges

Nickel alloy flanges are manufactured according to the applicable product specification and customer requirements. Forging is a commonly specified manufacturing route for Alloy 600 flange products, with subsequent heat treatment, machining and inspection performed according to the governing standard.

The manufacturing route may include material preparation, forging, heat treatment, machining, flange drilling, facing, dimensional inspection and final identification. Exact manufacturing requirements should be confirmed against the applicable specification.

For products specified to ASTM B564, the standard's requirements should govern material condition, mechanical properties, testing and acceptance criteria.

Quality Testing of Inconel 600 Lapped Joint Flanges

Quality inspection is an important part of supplying nickel alloy flange products. Testing and inspection can be performed according to the applicable product specification, purchase order and agreed inspection plan.

• Visual inspection
• Dimensional inspection
• Flange thickness inspection
• Outside diameter inspection
• Bolt-hole inspection
• Face and surface inspection
• Material identification
• Chemical composition verification
• Mechanical testing where required
• Hardness testing where required
• Positive Material Identification where specified
• Third-party inspection where required
• Material Test Certificate documentation

Dimensions of UNS N06600 Lapped Joint Flanges

Flange dimensions should be selected according to the applicable dimensional standard. Commonly referenced dimensional requirements for lap joint flanges include ASME B16.5, while larger-diameter applications may require another applicable standard.

Published supplier specifications commonly list Inconel 600 lap joint flanges under ASTM B564/ASME SB564 and ASME B16.5, with pressure classes and sizes varying according to the product range. :contentReference[oaicite:5]{index=5}

Customers should specify the nominal pipe size, pressure class, flange facing, bore, thickness and applicable standard when requesting a quotation.

Flange Facing Options

Depending on the project requirements, Inconel 600 flange products can be specified with different facing configurations. Common flange face categories include:

• Raised Face (RF)
• Flat Face (FF)
• Ring Type Joint (RTJ)

The correct facing must match the mating flange, gasket and service requirements. It should not be selected independently from the complete piping design.

Inconel 600 Lapped Joint Flanges and Stub Ends

A lapped joint flange normally operates together with a suitable stub end. The stub end forms the actual pipe-to-flange interface while the loose flange ring provides the bolting connection.

This arrangement allows the flange to rotate around the stub end before bolting. This can make alignment simpler and can be beneficial in systems that require repeated maintenance.

For corrosion-resistant services, the engineer should determine the appropriate material for both the stub end and flange arrangement based on the fluid, temperature, pressure and corrosion mechanism.

Packaging of UNS N06600 Inconel 600 Lapped Joint Flanges

Proper export packaging protects flange surfaces and identification markings during handling, storage and international transportation.

• Protective packaging for machined surfaces
• Suitable wrapping
• Strong export-grade wooden packing where required
• Moisture protection where applicable
• Flange face protection
• Product identification
• Heat or batch identification where applicable
• Customer-specific packing requirements

Why Choose Synergy Engineering Solution?

• Leading manufacturer, stockist and worldwide exporter.
• Specialized nickel alloy product supply.
• Strong Middle East and GCC export focus.
• Support for EPC contractors and procurement teams.
• Support for industrial distributors and stockists.
• Technical specification coordination.
• Inspection and documentation support.
• Export packaging coordination.
• Customer-focused quotation process.
• Based in Mumbai, India.

How to Order UNS N06600 Inconel 600 Lapped Joint Flanges

For an accurate quotation, customers should provide complete technical and commercial information. Recommended details include:

• UNS N06600 / Inconel 600 grade
• Lapped Joint / Lap Joint flange requirement
• Nominal pipe size
• Pressure class
• Flange facing
• Outside diameter
• Flange thickness
• Bore dimensions
• Applicable ASTM / ASME / EN specification
• Quantity
• Inspection requirements
• Testing requirements
• Material certification requirements
• Packaging requirements
• Delivery destination

Request a Quote for UNS N06600 Inconel 600 Lapped Joint Flanges

If you are looking for a reliable UNS N06600 Inconel 600 Lapped Joint Flanges manufacturer, stockist, supplier or worldwide exporter, contact Synergy Engineering Solution.

We can review your technical requirements and provide a quotation based on size, pressure class, standard, quantity, inspection requirements and delivery destination.
