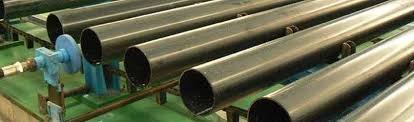

UNS N06601 Inconel 601 Seamless Pipe Specifications

Specification	Details
Product	UNS N06601 Inconel 601 Seamless Pipes
Material	Inconel 601 / Alloy 601
UNS Number	N06601
Werkstoff Number	2.4851
Product Type	Seamless Pipe
Manufacturing Standard	As specified by customer and applicable product specification
Dimensions	As per applicable ASTM / ASME / project requirements
Outside Diameter	As specified by customer
Wall Thickness	As specified by customer
Schedule	As required by project
Length	Single Random, Double Random or Cut Length as specified
Pipe Ends	Plain End, Bevelled End or customer-specified end
Surface	As specified by product standard or customer
Testing	According to applicable specification and purchase order
Certification	According to customer and project requirements

ASTM B167 Inconel 601 Seamless Pipes

ASTM B167 is a commonly referenced specification for seamless nickel-chromium-iron alloy pipes and tubes, including Alloy 601. A technical Alloy 601 data sheet identifies ASTM B167 / ASME SB167 among the applicable standards for seamless pipes and tubes. :contentReference[oaicite:3]{index=3}

Synergy Engineering Solution can review requirements for ASTM B167 / ASME SB167 UNS N06601 seamless products according to the customer's purchase order and project specification.

Customers should always confirm the required product form, dimensions, material condition, testing requirements and certification before placing an order.

Why Choose Seamless Inconel 601 Pipes?

Seamless pipes are produced without a longitudinal weld. For applications where the project specification calls for seamless construction, this product form provides a continuous tubular structure rather than a welded longitudinal joint.

For high-temperature and demanding industrial applications, the pipe manufacturing method is only one part of the overall material-selection process. Engineers should also evaluate the alloy grade, wall thickness, pressure, temperature, process fluid, corrosion mechanism and applicable piping code.

Chemical Composition of Inconel 601

Element	Typical Specification Range / Maximum
Nickel (Ni)	58.0 – 63.0%
Chromium (Cr)	21.0 – 25.0%
Aluminium (Al)	1.0 – 1.7%
Iron (Fe)	Balance
Carbon (C)	0.10% max
Manganese (Mn)	1.50% max
Silicon (Si)	0.50% max
Sulfur (S)	0.015% max
Copper (Cu)	1.00% max

The exact chemical requirements should be verified against the applicable material specification and material test certificate for the supplied product. Published Alloy 601 data sheets report nickel in the 58–63% range, chromium in the 21–25% range and aluminium in the 1.0–1.7% range. :contentReference[oaicite:4]{index=4}

Mechanical Properties of UNS N06601

Published specifications for Alloy 601 seamless products commonly identify minimum room-temperature tensile strength around 550 MPa, minimum yield strength around 205 MPa and minimum elongation around 30%, depending on the applicable product specification and material condition. :contentReference[oaicite:5]{index=5}

Property	Typical / Published Minimum Value
Tensile Strength	Approximately 550 MPa minimum
Yield Strength	Approximately 205 MPa minimum
Elongation	Approximately 30% minimum
Density	Approximately 8.1 g/cm³

Actual mechanical requirements must be confirmed against the specific product standard, heat treatment and supplied material condition.

High-Temperature Oxidation Resistance

One of the most important characteristics of Inconel 601 is its resistance to oxidation at elevated temperatures. The alloy's aluminium addition promotes the formation of a protective oxide layer, while chromium also contributes to oxidation resistance.

Published technical data describes Alloy 601 as having outstanding oxidation resistance at high temperatures, including resistance to oxide scale spalling during thermal cycling. :contentReference[oaicite:6]{index=6}

This property makes UNS N06601 particularly relevant for selected heat-treatment, furnace and thermal-processing applications.

Applications of UNS N06601 Inconel 601 Seamless Pipes

• Chemical processing plants
• Petrochemical plants
• Oil and gas facilities
• Refineries
• Thermal-processing systems
• Industrial furnaces
• Heat-treatment equipment
• Power-generation equipment
• Gas-processing systems
• Pollution-control equipment
• High-temperature process piping
• Specialized industrial equipment

Inconel 601 Seamless Pipes for Chemical Processing

Chemical processing environments can involve elevated temperatures, corrosive process fluids and demanding operating cycles. Nickel alloy piping can be selected where the alloy's resistance characteristics meet the requirements of the process.

UNS N06601 Inconel 601 Seamless Pipes can be considered for suitable chemical-processing applications where oxidation and high-temperature corrosion resistance are required.

Inconel 601 Seamless Pipes for Petrochemical Applications

Petrochemical facilities use extensive process piping and thermal equipment. Some systems operate under elevated temperatures and corrosive environments that require carefully selected materials.

Synergy Engineering Solution supplies Inconel 601 Seamless Pipes for suitable petrochemical applications according to customer specifications, drawings and project requirements.

Inconel 601 Seamless Pipes for Oil and Gas

The oil and gas industry uses piping systems in production, processing, refining and associated equipment. Material selection depends on pressure, temperature, process chemistry, corrosion mechanism and applicable design code.

Our UNS N06601 Inconel 601 Seamless Pipes can be supplied for suitable oil and gas applications where the alloy has been selected by the engineering specification.

Inconel 601 Seamless Pipes for Refineries

Refineries operate furnaces, heaters, process piping and other equipment under demanding thermal and chemical conditions. Inconel 601 is particularly associated with high-temperature oxidation-resistant applications.

Special Metals identifies Alloy 601 applications in industrial furnaces, heat-treating equipment, petrochemical and process equipment and gas-turbine components. :contentReference[oaicite:7]{index=7}

Inconel 601 Seamless Pipes for Furnace and Heat-Treatment Equipment

Furnace and heat-treatment equipment can experience repeated heating and cooling cycles. Inconel 601's resistance to high-temperature oxidation and oxide-scale spalling makes it a material of interest for selected thermal-processing applications.

Potential applications include furnace components, radiant-tube systems, heat-treatment equipment and other components exposed to elevated-temperature atmospheres.

Inconel 601 Seamless Pipes for Power Generation

Power-generation systems can include high-temperature components and process equipment requiring specialized alloys. Inconel 601 can be considered for suitable applications where its oxidation and corrosion resistance meet the engineering requirements.

The final material selection should be based on the specific operating conditions and applicable design requirements.

Inconel 601 Seamless Pipes for Gas Turbine Applications

Inconel 601 is used in selected gas-turbine and combustion-related applications because of its high-temperature properties. Published Alloy 601 information identifies gas-turbine components among its application areas. :contentReference[oaicite:8]{index=8}

Where seamless pipe or tubing is specified, the appropriate dimensions, material condition and applicable standard must be confirmed before procurement.

Inconel 601 Pipe Size and Thickness Options

UNS N06601 Seamless Pipes can be specified according to outside diameter and wall thickness. Published supplier data for Alloy 601 seamless products includes various pipe and tube sizes, while the actual available range depends on manufacturing capability, standard and quantity. :contentReference[oaicite:9]{index=9}

Customers can request standard or project-specific dimensions by providing the required outside diameter, wall thickness or schedule, length and quantity.

Inconel 601 Pipe Schedule Options

Depending on the required pipe dimensions and applicable specification, customers may request schedules such as SCH 5S, SCH 10S, SCH 20, SCH 40, SCH 80, SCH 120, SCH 160 or other specified wall thicknesses. Availability depends on size, product form and applicable standard.

• Schedule 5S
• Schedule 10S
• Schedule 20
• Schedule 40 / 40S
• Schedule 80 / 80S
• Schedule 120
• Schedule 160
• Custom wall thickness where applicable

Inconel 601 Seamless Pipe Lengths

Customers may specify single random lengths, double random lengths or cut lengths according to the project requirement. Exact available lengths depend on product size, manufacturing method and order quantity.

Inconel 601 Seamless Pipe Ends

Common pipe-end configurations include plain ends and bevelled ends. Threaded or other special ends may be considered where appropriate to the product size and customer specification.

• Plain End
• Bevelled End
• Customer-specified end configuration

Inspection and Testing of UNS N06601 Seamless Pipes

Quality and inspection requirements depend on the applicable product standard, purchase order and project specification. Synergy Engineering Solution can coordinate documentation and inspection requirements according to the customer's requirements.

• Visual inspection
• Dimensional inspection
• Outside diameter inspection
• Wall thickness inspection
• Length verification
• Chemical composition verification
• Mechanical testing
• Hardness testing where specified
• Positive Material Identification (PMI)
• Non-destructive testing where required
• Hydrostatic or other specified testing
• Third-party inspection where specified
• Material Test Certificate

Material Test Certificate for Inconel 601 Pipes

Material Test Certificates provide important information about the supplied material, such as chemical composition, mechanical properties, heat number and applicable specification. Customers can specify the required certification level during the quotation stage.

Where required by the project, additional inspection documentation such as PMI, third-party inspection reports and testing reports can be coordinated.

Quality Control of Inconel 601 Seamless Pipes

Quality control should verify both material identity and dimensional conformity. Important inspection points include grade identification, heat-number traceability, outside diameter, wall thickness, length, surface condition, pipe ends and markings.

For international engineering projects, documentation and traceability can be particularly important. Synergy Engineering Solution supports specification-based supply according to customer requirements.

Marking of UNS N06601 Seamless Pipes

Product identification can include information such as material grade, specification, size, wall thickness, heat number and manufacturer identification, subject to the applicable standard and customer requirements.

Correct marking supports product traceability during storage, transportation, fabrication and installation.

Packaging of Inconel 601 Seamless Pipes

Export packaging is important for protecting seamless pipes during transportation and handling. Packaging requirements depend on pipe size, surface finish, destination and customer requirements.

• Plastic wrapping
• Protective end caps where applicable
• Steel-strip bundling
• Wooden pallets
• Wooden boxes or cases where required
• Moisture protection where appropriate
• Product identification tags
• Heat-number traceability
• Export-grade packing

UNS N06601 Inconel 601 Seamless Pipes Worldwide Exporter

Synergy Engineering Solution is an India-based manufacturer, stockist and worldwide exporter of industrial nickel alloy products. We supply UNS N06601 Inconel 601 Seamless Pipes to international customers according to their technical and commercial requirements.

Our export services support EPC contractors, engineering companies, distributors, stockists, fabricators and industrial end users.

We focus on providing specification-based products, documentation support, export packaging and shipment coordination for international orders.

UNS N06601 Inconel 601 Seamless Pipes for Middle East

The Middle East is an important market for oil and gas, petrochemical, refinery, power-generation and industrial projects. These sectors can require nickel alloy piping and other specialized materials for demanding service conditions.

Synergy Engineering Solution has a strong export focus on the Middle East and GCC region for UNS N06601 Inconel 601 Seamless Pipes.

• United Arab Emirates (UAE)
• Saudi Arabia
• Qatar
• Oman
• Kuwait
• Bahrain
• Other international destinations

Inconel 601 Seamless Pipes Supplier in UAE

Synergy Engineering Solution supports customers in the United Arab Emirates requiring UNS N06601 Inconel 601 Seamless Pipes for suitable industrial, oil and gas, refinery, petrochemical and high-temperature applications.

Customers can send pipe size, wall thickness, specification, quantity, inspection requirements and delivery location to receive a quotation.

Inconel 601 Seamless Pipes Supplier in Saudi Arabia

Saudi Arabia has extensive oil, gas, refinery and petrochemical infrastructure. Synergy Engineering Solution supplies UNS N06601 Inconel 601 Seamless Pipes for suitable applications according to customer specifications and project requirements.

Inconel 601 Seamless Pipes Supplier in Qatar

Qatar's energy and gas-processing industries require specialized piping and process equipment. We support Qatar-based customers and EPC procurement teams requiring Inconel 601 Seamless Pipes.

Inconel 601 Seamless Pipes Supplier in Oman

Oman's oil and gas and industrial sectors can require corrosion-resistant and high-temperature alloy products. Synergy Engineering Solution supports Oman enquiries for UNS N06601 Inconel 601 Seamless Pipes.

Inconel 601 Seamless Pipes Supplier in Kuwait

Kuwait's oil, gas, refinery and petrochemical industries use specialized piping components for demanding applications. We supply Inconel 601 Seamless Pipes according to project requirements.

Inconel 601 Seamless Pipes Supplier in Bahrain

Synergy Engineering Solution supports customers in Bahrain seeking UNS N06601 Inconel 601 Seamless Pipes for suitable industrial, refinery, petrochemical and process applications.

Why Choose Synergy Engineering Solution?

• Leading manufacturer, stockist and worldwide exporter.
• Specialized supply of nickel alloy products.
• Strong Middle East and GCC export focus.
• India-based international supply operation.
• Support for EPC and engineering projects.
• Specification-based product supply.
• Inspection and certification coordination.
• Export-grade packaging support.
• Support for distributors and industrial buyers.
• Customer-specific technical requirements.
• Worldwide shipment coordination.

How to Order UNS N06601 Inconel 601 Seamless Pipes

For an accurate quotation, customers should provide complete technical and commercial information.

• Material grade: UNS N06601 / Inconel 601
• Product: Seamless Pipe
• Outside diameter
• Wall thickness or schedule
• Length
• Applicable ASTM / ASME specification
• Quantity
• Pipe-end requirement
• Testing requirements
• Inspection requirements
• Material certification requirements
• Packaging requirements
• Delivery destination

Request a Quote for UNS N06601 Inconel 601 Seamless Pipes

If you are looking for a reliable UNS N06601 Inconel 601 Seamless Pipes manufacturer, stockist, supplier or worldwide exporter, contact Synergy Engineering Solution.

Send your required pipe size, wall thickness, specification, quantity, testing requirements and delivery location to our sales team.

Frequently Asked Questions About UNS N06601 Inconel 601 Seamless Pipes

1. What are UNS N06601 Inconel 601 Seamless Pipes?

UNS N06601 Inconel 601 Seamless Pipes are nickel-chromium alloy pipes manufactured from Inconel 601 without a longitudinal welded seam. They are used in suitable industrial applications requiring high-temperature oxidation and corrosion resistance.

2. What is the UNS number of Inconel 601?

The UNS designation for Inconel 601 is N06601. The alloy is also commonly known as Alloy 601.

3. What is Inconel 601 made from?

Inconel 601 is primarily a nickel-chromium alloy with an aluminium addition. Published specifications identify approximately 58–63% nickel, 21–25% chromium and 1.0–1.7% aluminium, with iron as the balance. :contentReference[oaicite:10]{index=10}

4. What is the main advantage of Inconel 601?

One of its principal advantages is its resistance to high-temperature oxidation. The aluminium addition contributes to the formation of a protective oxide scale.

5. What standard is commonly used for Inconel 601 seamless pipes?

ASTM B167 / ASME SB167 is commonly referenced for seamless nickel-chromium-iron alloy pipes and tubes including Alloy 601. The applicable standard should always be confirmed against the project specification. :contentReference[oaicite:11]{index=11}

6. Where are Inconel 601 Seamless Pipes used?

They can be used in suitable chemical processing, petrochemical, oil and gas, refinery, thermal-processing, industrial furnace, power-generation and specialized high-temperature applications.

7. Do you export UNS N06601 Seamless Pipes worldwide?

Yes. Synergy Engineering Solution is a worldwide exporter of industrial products and has a strong focus on international and Middle East markets.

8. Do you export Inconel 601 Seamless Pipes to UAE?

Yes. We support UAE customers and project procurement requirements for UNS N06601 Inconel 601 Seamless Pipes.

9. Do you supply Inconel 601 Seamless Pipes to Saudi Arabia?

Yes. Synergy Engineering Solution supplies and exports Inconel 601 products for suitable Saudi Arabian industrial and engineering requirements.

10. Do you export Inconel 601 Pipes to Qatar, Oman and Kuwait?

Yes. Our Middle East export focus includes Qatar, Oman and Kuwait, along with UAE, Saudi Arabia and Bahrain.

11. Can you supply ASTM B167 Inconel 601 Seamless Pipes?

ASTM B167 / ASME SB167 is a commonly referenced specification for seamless nickel-chromium-iron alloy pipes and tubes. Supply should be confirmed against the required size, grade, condition, quantity and project specification.

12. What sizes of Inconel 601 Seamless Pipes are available?

Size availability depends on the required standard and manufacturing capability. Customers should provide their required outside diameter and wall thickness for confirmation.

13. Can you provide custom sizes?

Special or project-specific sizes can be reviewed according to manufacturing feasibility, applicable standards and customer drawings.

14. Can you provide inspection documents?

Yes. Inspection and documentation can be coordinated according to the applicable specification, purchase order and project requirements.

15. How can I request a quotation?

Send the material grade, pipe size, wall thickness, length, applicable standard, quantity, testing requirements and delivery destination to sales@synergytubes.com or call +91 83699 01616.
