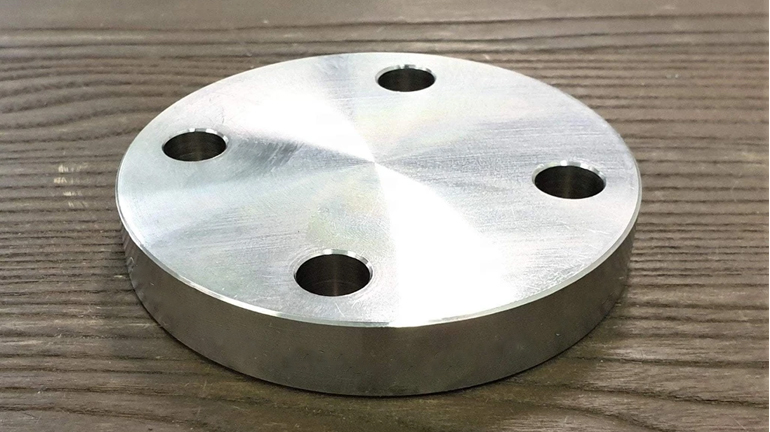

Key Features of Inconel 625 Blind BLRF Flanges

The combination of Inconel 625 material and Blind Raised Face flange construction makes these components suitable for many specialized piping and equipment applications. Important features include:

• Manufactured from UNS N06625 Inconel 625 alloy.
• Blind flange configuration for closing piping or equipment connections.
• Raised Face design for gasket seating.
• Excellent resistance to many corrosive environments.
• Good resistance to pitting and crevice corrosion in suitable environments.
• High strength compared with many conventional corrosion-resistant alloys.
• Suitable for demanding industrial applications when correctly specified.
• Available in different nominal sizes and pressure classes according to requirements.
• Suitable for worldwide industrial and project procurement.
• Available with documentation and inspection requirements as specified by the customer.

Why Choose UNS N06625 Inconel 625 for Blind Flanges?

Material selection is an important part of designing reliable piping and pressure-containing systems. Inconel 625 offers a combination of corrosion resistance and strength that makes it useful in demanding environments.

The alloy contains significant amounts of nickel and chromium together with molybdenum and niobium. This alloy chemistry contributes to its resistance to various forms of corrosion, including localized corrosion in appropriate service conditions.

Inconel 625 is also used in applications where exposure to seawater, chemical processing environments or other aggressive conditions can make material selection particularly important. The suitability of the alloy should always be confirmed against the exact chemical and operating conditions of the application.

UNS N06625 Inconel 625 Chemical Composition

Inconel 625 is a nickel-chromium-molybdenum alloy with niobium as an important alloying addition. The chemical composition is controlled by the applicable material specification.

Element	Typical / Applicable Composition
Nickel (Ni)	Balance / Major Element
Chromium (Cr)	20.0 – 23.0%
Molybdenum (Mo)	8.0 – 10.0%
Niobium + Tantalum (Nb + Ta)	3.15 – 4.15%
Iron (Fe)	5.0% Maximum
Cobalt (Co)	1.0% Maximum
Carbon (C)	0.10% Maximum
Manganese (Mn)	0.50% Maximum
Silicon (Si)	0.50% Maximum
Phosphorus (P)	0.015% Maximum
Sulfur (S)	0.015% Maximum

The exact chemical composition should always be verified against the applicable material specification and supplied Material Test Certificate. Requirements may vary according to product form and governing standard.

UNS N06625 Inconel 625 Blind BLRF Flanges Specifications

Synergy Engineering Solution can evaluate customer requirements for Inconel 625 Blind BLRF Flanges in different sizes, pressure classes, flange standards and inspection conditions. Customers should provide complete technical details when requesting a quotation.

Parameter	Specification / Option
Product	UNS N06625 Inconel 625 Blind BLRF Flanges
Material	Inconel 625 / Alloy 625
UNS Designation	N06625
Flange Type	Blind Flange
Face Type	Raised Face (RF)
Size	As per customer requirement
Pressure Class	As specified by customer/project
Dimensions	According to applicable flange standard
Testing	As required by applicable specification
Inspection	As specified by purchase order
Certification	Material and inspection documentation as required

Inconel 625 Blind Raised Face Flanges Design

The primary purpose of a blind flange is to provide a removable closure for a piping system or equipment connection. The flange is bolted to a mating flange using a suitable gasket and bolting arrangement.

The raised face increases the defined gasket seating surface and is widely used in industrial flange connections. Proper gasket selection, bolt tightening, flange alignment and installation procedures are important for achieving a reliable joint.

Blind flanges can also be useful during maintenance and commissioning because the bolted connection allows the closure to be removed when access to the piping system is required.

Advantages of UNS N06625 Inconel 625 Blind BLRF Flanges

• High corrosion resistance in many demanding environments.
• Excellent resistance to localized corrosion in suitable service conditions.
• Strong nickel-based alloy construction.
• Raised face provides a defined gasket seating surface.
• Useful for closing and isolating piping connections.
• Suitable for selected high-temperature and corrosive services.
• Available in various sizes and pressure classes.
• Suitable for process plants and industrial equipment.
• Can be supplied according to project-specific requirements.

Applications of UNS N06625 Inconel 625 Blind BLRF Flanges

UNS N06625 Inconel 625 Blind BLRF Flanges are used in industries where corrosion resistance and reliable piping connections are important. The exact suitability depends on the operating conditions and engineering specification.

• Oil and gas industry.
• Petrochemical plants.
• Chemical processing plants.
• Marine engineering.
• Offshore platforms.
• Power-generation facilities.
• Desalination systems.
• Pollution-control equipment.
• Process piping systems.
• Heat-treatment and industrial equipment.
• Specialized pressure-containing systems.
• Seawater-related applications.

Inconel 625 Blind Flanges for Oil and Gas Industry

The oil and gas industry uses piping and process equipment in environments where corrosion resistance, strength and long-term reliability are important. Nickel alloys such as Inconel 625 may be selected for specific applications where conventional stainless steels or carbon steels are not sufficient for the intended service.

UNS N06625 Blind BLRF Flanges can be used as removable closures on compatible piping systems, equipment nozzles and process connections. Their use should be determined by the project's material selection philosophy, process conditions and applicable standards.

Inconel 625 Blind Flanges for Petrochemical Plants

Petrochemical facilities contain process piping and equipment exposed to combinations of pressure, temperature and corrosive chemicals. Inconel 625 offers a useful combination of corrosion resistance and strength for selected services.

Blind Raised Face Flanges manufactured from UNS N06625 can be specified for suitable equipment connections and pipeline termination points. The exact material grade, flange class, gasket and bolting combination should be selected by the responsible engineering team.

Inconel 625 BLRF Flanges for Chemical Processing

Chemical-processing environments can contain aggressive media that require carefully selected construction materials. Inconel 625 is recognized for resistance to a wide range of corrosive conditions.

For chemical-processing applications, engineers should consider chemical concentration, temperature, pressure, velocity, impurities and possible localized corrosion mechanisms before approving the material.

Inconel 625 Blind Flanges for Marine Applications

Marine and offshore environments can expose components to seawater and chloride-containing conditions. Inconel 625 is widely associated with corrosion-resistant applications because of its resistance to several forms of localized corrosion.

UNS N06625 Blind BLRF Flanges can therefore be considered for compatible marine and offshore applications where the engineering specification calls for a nickel-based corrosion-resistant alloy.

UNS N06625 Inconel 625 Blind Flanges for Middle East Markets

The Middle East is an important industrial market for oil and gas, petrochemical, refining, chemical processing, power generation, desalination and infrastructure projects. These industries can require specialized piping components manufactured from corrosion-resistant alloys.

Synergy Engineering Solution provides worldwide export support with a particular focus on Middle East customers. Our target markets include:

• United Arab Emirates (UAE)
• Saudi Arabia
• Oman
• Qatar
• Kuwait
• Bahrain
• Other Middle East markets

Customers and procurement teams can contact us with project specifications, quantities, delivery locations and inspection requirements for quotation and supply evaluation.

UNS N06625 Inconel 625 Blind BLRF Flanges Worldwide Exporter

As a worldwide exporter of UNS N06625 Inconel 625 Blind BLRF Flanges, Synergy Engineering Solution supports customers across international markets. Our supply approach is designed for distributors, stockists, engineering companies, EPC contractors, fabricators, maintenance companies and industrial procurement departments.

We understand that international customers may require specific flange standards, pressure classes, dimensions, certification and inspection documentation. Therefore, technical details should be provided before order confirmation to ensure that the requested product is matched with the applicable specification.

Quality Assurance of Inconel 625 Blind BLRF Flanges

Quality control is an important consideration when purchasing nickel alloy flanges for industrial projects. Inspection and certification requirements can be established according to the purchase order, applicable material standard and project specification.

• Material grade verification.
• Chemical composition verification.
• Dimensional inspection.
• Visual inspection.
• Raised face inspection.
• Marking and traceability.
• Material Test Certificate.
• Non-destructive testing where specified.
• Positive Material Identification where required.
• Third-party inspection where specified.

How to Select the Right Inconel 625 Blind BLRF Flange?

Selecting the correct blind flange requires more than simply identifying the material grade. The flange must be compatible with the piping system, pressure, temperature, gasket, bolting and process environment.

• Confirm the material grade as UNS N06625.
• Confirm the nominal pipe size.
• Select the required pressure class.
• Specify the applicable flange dimensional standard.
• Confirm Raised Face requirements.
• Specify gasket requirements.
• Specify bolting requirements where applicable.
• Confirm operating temperature and pressure.
• Review process-media compatibility.
• Specify inspection and certification requirements.
• Confirm quantity and delivery destination.

Common Flange Standards

The dimensional and pressure requirements for blind flanges depend on the project specification. Customers may specify recognized flange standards according to their piping design.

• ASME B16.5 for applicable pipe flanges and flanged fittings.
• ASME B16.47 for applicable large-diameter flange requirements.
• Applicable ASTM/ASME material specifications for the product form.
• Customer-specific engineering and inspection specifications.

The applicable standard should always be confirmed before production or supply because dimensional, pressure-rating and material requirements may differ between standards.

Why Choose Synergy Engineering Solution?

Synergy Engineering Solution is committed to serving industrial customers requiring specialized piping products, nickel alloys and engineering components. We operate as a manufacturer, stockist and exporter and support domestic as well as international procurement requirements.

• Leading manufacturer, stockist and exporter.
• Specialized supply of nickel alloy products.
• UNS N06625 Inconel 625 product supply.
• Worldwide export support.
• Strong focus on Middle East markets.
• Support for EPC and industrial procurement projects.
• Technical specification-based quotations.
• Support for inspection and documentation requirements.
• Customized size and specification evaluation.
• Direct sales support from Mumbai, India.

Ordering UNS N06625 Inconel 625 Blind BLRF Flanges

To receive an accurate quotation, customers should provide complete technical and commercial information. This helps our team understand the required product and prepare an appropriate supply proposal.

• Product: UNS N06625 Inconel 625 Blind BLRF Flanges.
• Nominal size.
• Pressure class.
• Applicable flange standard.
• Raised Face requirements.
• Quantity required.
• Material certification requirements.
• Inspection requirements.
• Third-party inspection requirements, if applicable.
• Delivery location.
• Required delivery schedule.

Frequently Asked Questions – UNS N06625 Inconel 625 Blind BLRF Flanges
