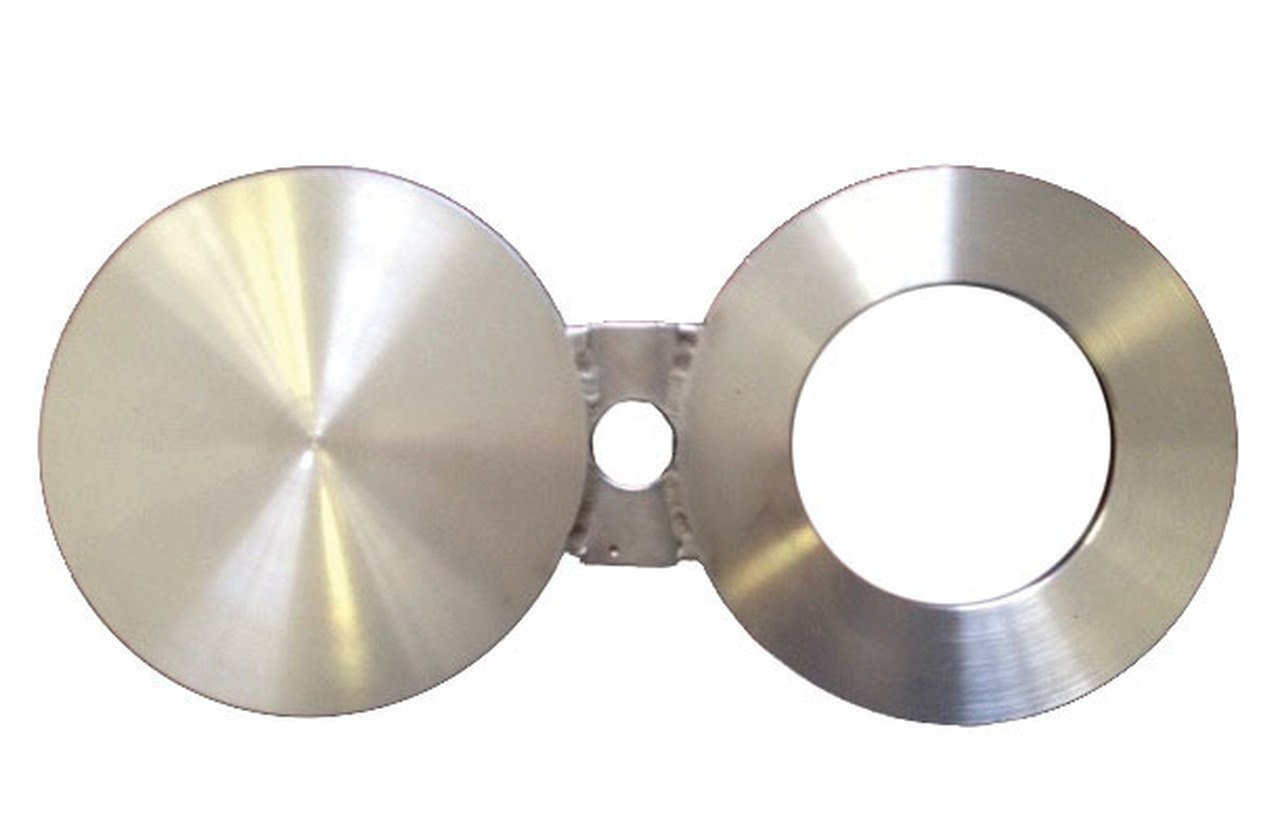

Key Features of Inconel 625 Spectacle Blind Flanges

UNS N06625 Inconel 625 Spectacle Blind Flanges combine the figure-eight configuration of a spectacle blind with the material characteristics of Inconel 625. The final performance of the component depends on the material condition, dimensions, pressure rating, manufacturing quality, gasket, bolting and operating environment.

• Manufactured from UNS N06625 Inconel 625 nickel-based alloy.
• Figure-eight or spectacle blind configuration.
• Includes a solid blind section and an open section.
• Provides a visible indication of the blind or open position.
• Suitable for specified piping isolation applications.
• Inconel 625 offers corrosion resistance in a range of environments.
• Suitable for selected demanding industrial piping applications.
• Can be supplied for domestic and international projects.
• Available according to applicable specifications and customer requirements.
• Suitable for Middle East and worldwide export requirements.

Inconel 625 Material for Spectacle Blind Flanges

Inconel 625 is a nickel-based alloy known for a combination of corrosion resistance and mechanical properties. Its alloy system includes nickel, chromium, molybdenum and niobium, which contribute to its performance in various demanding environments.

Chromium contributes to resistance in oxidizing environments, while molybdenum is associated with resistance to localized corrosion in many service conditions. The nickel-based composition provides the alloy foundation, and niobium contributes to strengthening characteristics.

Because of these characteristics, Inconel 625 can be considered for applications involving seawater, chemical processing, marine environments, oil and gas services and other corrosive industrial conditions. Actual suitability should always be verified against the exact process medium, pressure, temperature and project requirements.

Manufacturing of UNS N06625 Spectacle Blind Flanges

Manufacturing a spectacle blind flange requires control over material selection, dimensional accuracy, machining and inspection. Depending on the applicable specification and product requirements, manufacturing may involve approved forging or plate-based production routes followed by machining and finishing.

Important dimensional characteristics can include the outside diameter, thickness, bore or opening, bolt-hole arrangement, flange face dimensions and web configuration. Precision machining helps achieve the required geometry and mating characteristics.

For specialty alloy products, material identification and traceability can also be important for project applications. Synergy Engineering Solution reviews customer specifications before supplying the required configuration and can coordinate applicable inspection and documentation requirements.

How Spectacle Blind Flanges Work

A spectacle blind has two functional positions. The solid section blocks the pipeline when it is rotated into the closed position. The open section provides a passage when it is rotated into the operating position.

The web connecting the two sections remains outside the primary flow opening and provides a visual indication of the selected position. This makes the spectacle blind configuration useful in piping systems where physical confirmation of line isolation is important.

The procedure for changing a spectacle blind position should always follow the plant's approved operating, isolation, depressurization and safety procedures. The flange itself should be selected and installed according to the applicable engineering requirements.

Standards for Inconel 625 Spectacle Blind Flanges

The applicable dimensional and pressure requirements for spectacle blind flanges depend on the project specification and recognized flange standards. Customers should identify the required standard when requesting a quotation.

• ASME B16.48 for applicable line blanks, including spectacle blind configurations.
• Applicable material specifications for UNS N06625 Inconel 625.
• Project-specific piping specifications.
• Customer-approved drawings and technical requirements.
• Inspection and documentation requirements stated in the purchase order.

The exact standard, material specification and pressure requirements should be confirmed before manufacture or supply because requirements can differ according to the application and project.

Applications of UNS N06625 Inconel 625 Spectacle Blind Flanges

Spectacle blind flanges can be used in piping systems where positive physical isolation or visible line configuration is required. Inconel 625 may be selected when the service environment also requires the characteristics of a nickel-based corrosion-resistant alloy.

• Oil and gas processing facilities
• Petrochemical plants
• Chemical processing systems
• Marine engineering
• Offshore facilities
• Seawater service systems
• Desalination-related applications
• Power generation facilities
• Industrial process piping
• Pollution-control systems
• Specialized corrosive-service applications

Inconel 625 Spectacle Blind Flanges for Oil & Gas

Oil and gas installations can involve corrosive fluids, high pressures and demanding operating conditions. Piping isolation components therefore need to be selected according to the service environment and piping design.

UNS N06625 Inconel 625 Spectacle Blind Flanges may be considered for selected oil and gas applications where the material's corrosion-resistant characteristics and the spectacle blind configuration meet the engineering requirements.

The appropriate flange size, pressure rating, material specification, gasket and bolting must be established from the project piping specification. Installation and rotation of the spectacle blind should follow the plant's approved safety and operating procedures.

Inconel 625 Spectacle Blinds for Petrochemical Plants

Petrochemical facilities process a variety of chemicals and hydrocarbon streams. Some piping systems can experience corrosive conditions that influence material selection for flanges and line isolation components.

Inconel 625 can be considered for selected petrochemical applications because of its resistance to various corrosive environments. A spectacle blind manufactured from UNS N06625 can provide a physical line-isolation configuration where specified by the piping design.

Advantages of Spectacle Blind Configuration

The figure-eight design offers several practical characteristics for piping systems. The solid and open portions are permanently connected, so the component does not require a separate loose blind plate to be stored when changing the line configuration.

• Clearly visible open and closed positions.
• Solid blind and open sections are connected together.
• Provides physical line isolation when the blind section is correctly positioned.
• Reduces uncertainty about whether the correct blind is installed.
• Useful for selected maintenance and process-isolation applications.
• Suitable for systems designed around spectacle blind dimensions.

Worldwide Exporter of UNS N06625 Inconel 625 Spectacle Blind Flanges

Synergy Engineering Solution is a worldwide exporter of specialty alloy piping products from Mumbai, India. We support international customers requiring UNS N06625 Inconel 625 Spectacle Blind Flanges for industrial, EPC and project requirements.

Our export process is designed around clear technical communication, quotation support, order coordination, packaging and shipment arrangements. Customers can provide their required size, pressure class, standard, quantity, inspection requirements and destination to receive a suitable quotation.

Middle East Exporter of Inconel 625 Spectacle Blind Flanges

The Middle East has major oil and gas, petrochemical, chemical, power, marine and desalination industries. These sectors can require specialty alloy piping components for challenging service environments.

Synergy Engineering Solution focuses on supplying UNS N06625 Inconel 625 Spectacle Blind Flanges to Middle East markets, including the United Arab Emirates, Saudi Arabia, Qatar, Oman and Kuwait.

• Inconel 625 Spectacle Blind Flanges Exporter to UAE
• Inconel 625 Spectacle Blind Flanges Exporter to Saudi Arabia
• Inconel 625 Spectacle Blind Flanges Exporter to Qatar
• Inconel 625 Spectacle Blind Flanges Exporter to Oman
• Inconel 625 Spectacle Blind Flanges Exporter to Kuwait
• UNS N06625 Spectacle Blinds Supplier for Middle East Projects
• Inconel 625 Line Blanks for Oil & Gas Applications

Inconel 625 Spectacle Blind Flanges for Marine Applications

Marine and offshore environments can expose piping components to seawater and chloride-containing conditions. Material selection is therefore important when designing components for these environments.

Inconel 625 has corrosion-resistant characteristics that can make it suitable for selected marine and seawater applications. UNS N06625 spectacle blind components may be considered where the alloy and spectacle blind configuration meet the engineering requirements.

Sizes and Pressure Requirements

Spectacle blind dimensions are selected according to the piping size, flange class, applicable standard and service requirements. The required thickness and geometry can vary according to pressure rating and standard.

For an accurate quotation, customers should provide the nominal pipe size, pressure class, applicable standard, material requirement, quantity and destination. This information enables the supplier to evaluate the product requirement accurately.

Quality Inspection

Inspection requirements for Inconel 625 spectacle blind flanges depend on the applicable product specification and purchaser requirements. Synergy Engineering Solution can review the required inspection and documentation requirements as part of the order process.

• Material identification and certification as specified.
• Dimensional inspection.
• Visual inspection.
• Flange-face inspection.
• Bore and opening dimensional verification.
• Bolt-hole arrangement inspection.
• Marking and identification.
• Additional inspection or testing when required by the purchase specification.

Packaging of Inconel 625 Spectacle Blinds

Correct packaging helps protect machined surfaces and flange faces during storage and transportation. International export orders may require packaging suitable for long-distance shipment and project-site handling.

Synergy Engineering Solution can coordinate packaging, marking and shipping requirements according to the customer's purchase order and destination. Protective measures can be used to reduce the risk of damage during handling and transportation.

Why Choose Synergy Engineering Solution?

Synergy Engineering Solution combines manufacturing, stocking and export capabilities to support customers requiring specialty alloy piping products. Our focus includes nickel alloy flanges and other industrial piping components.

• Leading manufacturer, stockist and exporter.
• Specialized supply of nickel alloy piping components.
• Worldwide export support from Mumbai, India.
• Strong focus on Middle East markets.
• Support for EPC and industrial project requirements.
• Technical requirement review before quotation.
• Customer-specific specifications can be evaluated.
• Export packaging and shipment coordination.
• Support for bulk and project requirements subject to availability.
• Responsive sales and quotation support.

How to Order UNS N06625 Inconel 625 Spectacle Blind Flanges

To obtain a quotation, customers should send their technical and commercial requirements to Synergy Engineering Solution. Providing complete information helps ensure that the required spectacle blind configuration can be evaluated correctly.

• Product name: UNS N06625 Inconel 625 Spectacle Blind Flanges
• Nominal pipe size
• Pressure class
• Applicable standard
• Material specification
• Quantity
• Required inspection
• Documentation requirements
• Destination country
• Required delivery schedule
