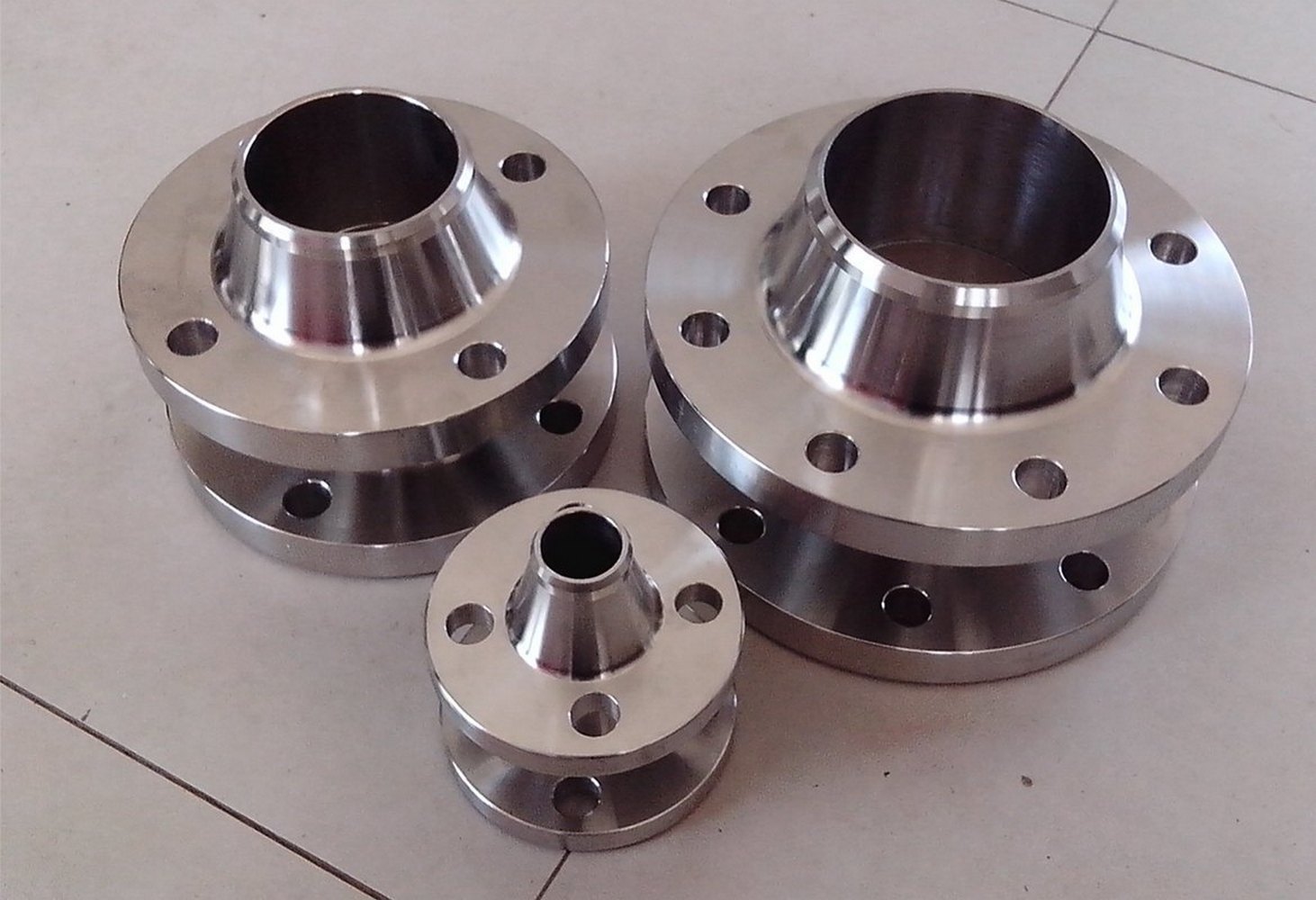

Key Features of Inconel 718 WNRF Flanges

The selection of Inconel 718 for specialized flange applications is generally based on the alloy's high strength and corrosion-resistant characteristics. Product performance depends on material condition, manufacturing route, heat treatment, dimensions and service conditions.

• High mechanical strength.
• Nickel-based alloy construction.
• Good corrosion-resistant characteristics in appropriate environments.
• Useful performance at elevated temperatures.
• Age-hardening capability.
• Weld neck configuration for butt-weld piping connections.
• Raised face configuration for gasket seating.
• Suitable for selected demanding industrial applications.
• Available for international industrial procurement.
• Can be supplied according to project-specific requirements.

Because the suitability of any flange depends on actual process conditions, customers should evaluate pressure, temperature, fluid chemistry, cyclic loading, vibration and applicable piping codes before selecting the material and flange configuration.

Why Choose UNS N07718 Inconel 718 for Weld Neck Flanges?

Material selection is critical for piping components used in demanding industrial environments. Inconel 718 is an age-hardenable nickel-based alloy developed to provide high strength together with corrosion-resistant performance. It is used across aerospace, oil and gas, power generation and other specialized applications. ([ATI](https://www.atimaterials.com/Products/Pages/ati-718.aspx))

The alloy's combination of nickel, chromium, niobium, molybdenum, titanium and aluminium contributes to its mechanical and metallurgical characteristics. Its precise composition and mechanical properties should always be verified against the applicable product specification.

For a Weld Neck WNRF flange, the long tapered hub provides a gradual transition between the flange and pipe. This makes the design useful for applications where stress distribution and reliable butt-welded connections are important considerations.

When Inconel 718 is selected for the flange material, the final engineering assessment should consider the complete service environment rather than relying on the alloy designation alone.

UNS N07718 Inconel 718 WNRF Flanges Specifications

The exact specification of a UNS N07718 Inconel 718 Weld Neck WNRF Flange depends on the required dimensional standard, pressure class, nominal size, flange facing, bore, hub dimensions and project requirements. Customers should provide complete technical information when requesting a quotation.

Common flange dimensional and pressure-rating standards used in industrial piping include ASME B16.5 for certain flange sizes and classes. Project specifications may require other standards, so customers should confirm the governing standard before ordering.

Weld Neck Raised Face Flange Design

A Weld Neck Raised Face flange consists of a flange ring and an integral tapered hub. The hub transitions from the flange to the pipe and is butt-welded to the pipe. The raised face provides a defined gasket seating surface.

The long tapered hub is an important characteristic of the weld neck design. It provides a gradual transition between the pipe wall and flange body, helping the connection accommodate stresses associated with pressure, temperature and mechanical loads.

For this reason, Weld Neck flanges are commonly considered for high-pressure, high-temperature and cyclic applications when specified by the relevant engineering design.

The suitability of a WNRF flange must be confirmed for the actual operating conditions and applicable piping code.

Inconel 718 WNRF Flanges for Oil and Gas Industry

Oil and gas installations can involve high pressures, temperature fluctuations, corrosive fluids and mechanical loading. Piping components used in these facilities therefore require careful material and design selection.

Inconel 718 is used in specialized oil and gas equipment where high strength is required. Its combination of mechanical properties and corrosion-resistant characteristics can make it suitable for demanding engineering applications. ([ATI](https://www.atimaterials.com/Products/Pages/ati-718.aspx))

UNS N07718 Inconel 718 WNRF Flanges may be considered in suitable piping and process applications when the engineering specification requires this nickel alloy and a weld neck raised face configuration.

Before purchasing, customers should verify compatibility with the process fluid, pressure, temperature, welding procedure, inspection requirements and applicable codes.

Inconel 718 WNRF Flanges for Petrochemical and Chemical Processing

Petrochemical and chemical processing facilities can expose piping components to aggressive chemicals, temperature changes and pressure fluctuations. Choosing an appropriate alloy and flange configuration is therefore essential.

Inconel 718 provides a combination of high strength and corrosion-resistant characteristics and is used in specialized industrial equipment. The material can be considered where the application requires a high-performance nickel-based alloy.

Synergy Engineering Solution supplies nickel alloy flange products for customers involved in chemical, petrochemical and process engineering projects. Technical requirements can be reviewed before quotation to ensure that the requested flange configuration matches the customer's specification.

Applications of UNS N07718 Inconel 718 Weld Neck WNRF Flanges

Depending on engineering requirements, product specification and service conditions, UNS N07718 Inconel 718 WNRF Flanges may be considered for applications in:

• Oil and Gas Industry
• Petrochemical Plants
• Refineries
• Chemical Processing Plants
• Gas Processing Facilities
• Power Generation Projects
• Marine Engineering
• Offshore Engineering
• Process Equipment
• Industrial Piping Systems
• EPC Projects
• Plant Maintenance and Shutdown Projects
• Specialized High-Performance Equipment

Worldwide Exporter of UNS N07718 Inconel 718 WNRF Flanges

Synergy Engineering Solution provides industrial piping products to customers in India and international markets. As a worldwide exporter, we support EPC contractors, engineering procurement companies, distributors, fabricators, maintenance contractors and industrial end users.

International procurement of nickel alloy flanges requires accurate technical communication. Customers can provide drawings, purchase specifications, material requirements, quantities and destination details to our sales team.

Our export support can include technical enquiry coordination, product sourcing, quotation assistance, documentation coordination, packaging requirements and shipment arrangements according to the agreed commercial terms.

UNS N07718 Inconel 718 WNRF Flanges Exporter for Middle East

Synergy Engineering Solution has a strong export focus on Middle East markets. The region has extensive oil and gas, petrochemical, refinery, power, marine and infrastructure projects that require specialized industrial piping components.

Middle East Markets We Focus On

• United Arab Emirates: Dubai, Abu Dhabi, Sharjah and industrial project locations.
• Saudi Arabia: Riyadh, Dammam, Jeddah and major industrial areas.
• Qatar: Doha and industrial project locations.
• Oman: Muscat, Sohar and industrial zones.
• Kuwait: Kuwait City and industrial areas.
• Bahrain: Manama and industrial locations.

Customers across the Middle East can send their flange size, pressure class, material specification, applicable standard, quantity, inspection requirements and delivery location for quotation.

Why Choose Synergy Engineering Solution?

Selecting a reliable supplier for nickel alloy flanges requires attention to material grade, dimensional requirements, pressure class, facing, manufacturing requirements, inspection and documentation. Synergy Engineering Solution supports customers requiring specialized industrial piping products.

• Leading manufacturer, stockist, supplier and exporter.
• Specialized focus on nickel alloy products.
• Worldwide export capabilities.
• Strong Middle East export focus.
• Support for EPC and industrial projects.
• Technical enquiry coordination.
• Support for drawings and customer specifications.
• Project-specific inspection coordination.
• Export packaging and dispatch support.
• Customer-focused quotation and order communication.

Quality and Inspection of Inconel 718 WNRF Flanges

Quality requirements for UNS N07718 Inconel 718 WNRF Flanges depend on the applicable material specification, product standard and project requirements. Synergy Engineering Solution can coordinate agreed inspection and documentation requirements for customer orders.

Depending on the purchase specification, customers may request chemical analysis, mechanical testing, dimensional inspection, positive material identification, non-destructive examination, third-party inspection or material certificates.

Because Inconel 718 properties depend on product form and heat-treatment condition, customers should clearly specify the required material condition and certification requirements in the purchase order. ([ATI](https://www.atimaterials.com/Products/Pages/ati-718.aspx))

Packaging and Export Support

Proper packaging helps protect industrial flanges from handling damage, contamination and environmental exposure during storage and transportation. Synergy Engineering Solution coordinates packaging according to product dimensions, quantity, destination and customer instructions.

For export orders, customers can provide destination details, preferred shipping method, packaging requirements and documentation instructions. Our team coordinates dispatch according to agreed commercial terms.

How to Order UNS N07718 Inconel 718 Weld Neck WNRF Flanges

For a fast and accurate quotation, customers should provide the following information:

1. Material grade: UNS N07718 / Inconel 718.
2. Flange type: Weld Neck Raised Face / WNRF.
3. Nominal pipe size.
4. Pressure class.
5. Applicable dimensional standard.
6. Pipe schedule or required bore.
7. Facing requirements.
8. Quantity.
9. Material condition or heat-treatment requirement.
10. Inspection and testing requirements.
11. Required certificates and documentation.
12. Delivery destination.
13. Required delivery schedule.

Frequently Asked Questions About UNS N07718 Inconel 718 WNRF Flanges

Get a Quote for UNS N07718 Inconel 718 Weld Neck WNRF Flanges

If you are searching for a UNS N07718 Inconel 718 Weld Neck WNRF Flanges manufacturer, stockist, supplier or worldwide exporter, contact Synergy Engineering Solution with your technical and commercial requirements.

We support customers in India and international markets, with a strong focus on the Middle East. Send your required size, pressure class, standard, quantity, inspection requirements and delivery destination to receive a quotation.
